HB-Laserkomponenten GmbH

Who we are

HB-Laser’s operational areas and services focus not only on its headquarters in Germany but extend to locations all around the world.

At the location in Schwaebisch Gmuend the departments for development, production, project planning, designing, training as well as the creative department are housed. On site our teams take care of implementation and realization of projects. Sometimes the operational areas couldn’t be more different: whether indoors or outdoors, in areas with extreme (weather) conditions, on buildings, underwater, or in underground tunnels – HB-Laser has many years of experience and competent, highly qualified staff to implement projects so that customer’s expectations are exceeded.

In addition to the project implementation, technical modifications, maintenance and service on site are also parts of the service spectrum of HB-Laser.

LIGHTCUBE SERIES

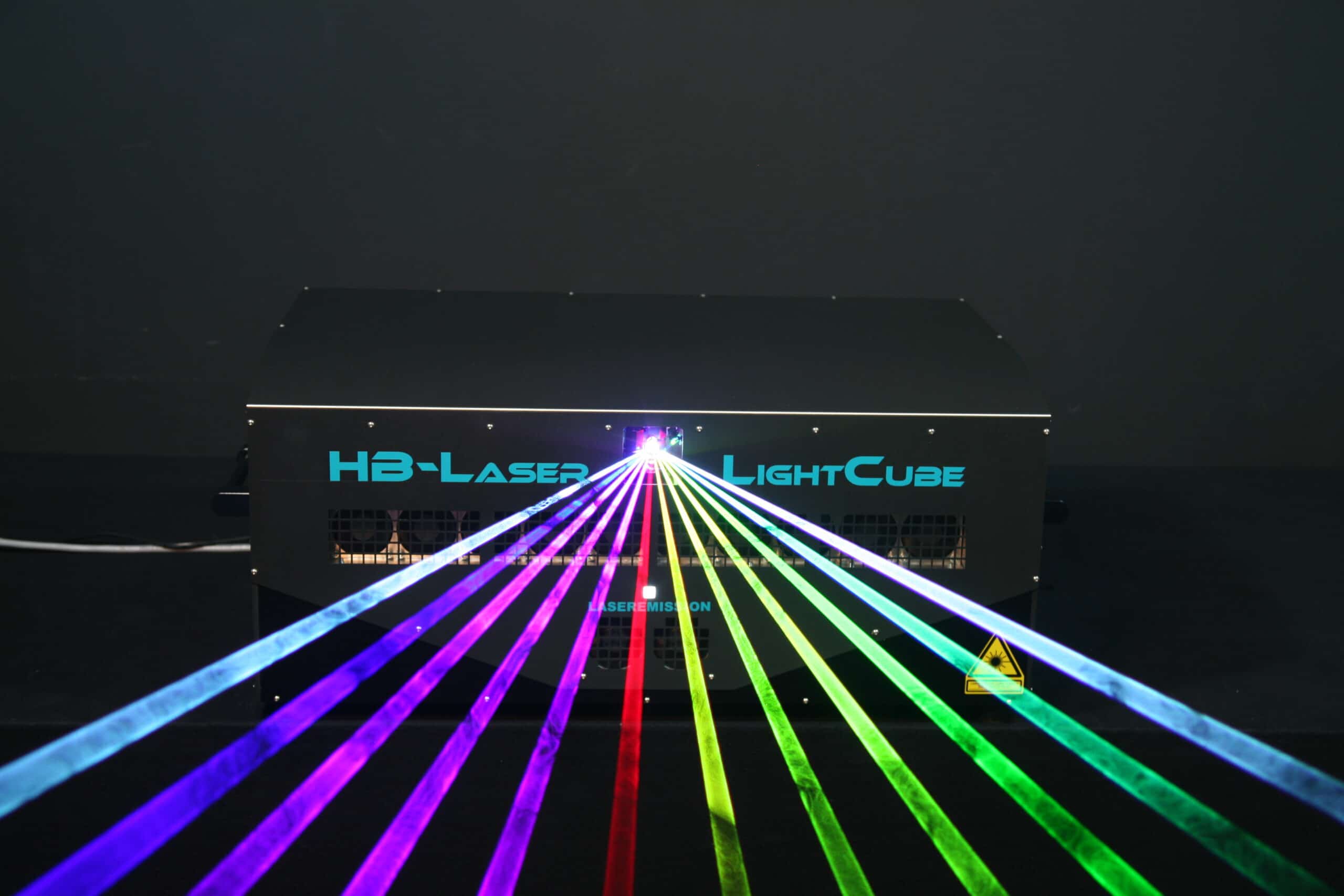

LightCube Universal 841

A compact show laser series in a robust, dust and weatherproof IP 53 housing. Developed and manufactured in Germany it is a perfect match for high-quality show laser applications, in- and outdoor.

  • air-cooled
  • dust- and weatherproof housing provides maintenance-free systems
  • extremely quiet operation makes this series a must have for museums, theatres and planetariums
LightCube Professional 860 MKII

A compact show laser in a robust and dustproof housing. Developed and manufactured in Germany it is a perfect match for high-quality show laser applications.

  • Unique Shock-Absorbing-Technology minimalizes influences caused by vibrations, shocks or bumps. It prevents damages / misalignment of the optical parts. (great for touring and rental)
  • processor-controlled, active tem-perature regulation ensures a long lifetime even if the system is continuously operated
  • dust proof housing provides maintenance-free systems
  • extremely quiet operation makes this series a must have for museums, theatres and planetariums
LightCube professional 863 MKII

A compact show laser series in a robust and dustproof housing. Developed and manufactured in Germany it is a perfect match for high-quality show laser applications.

LightCube Professional series is manufactured individually and can be adapted to customer requirements.Achievements up to 300W RGB and Low Divergence Executions with OPSL or fiber laser technology are available on request.

With integrated HB-FB4 controller are all connection options integrated. SD card player, TCP / IP, ILDA, DMX allows easy implementation in multimedia environments.

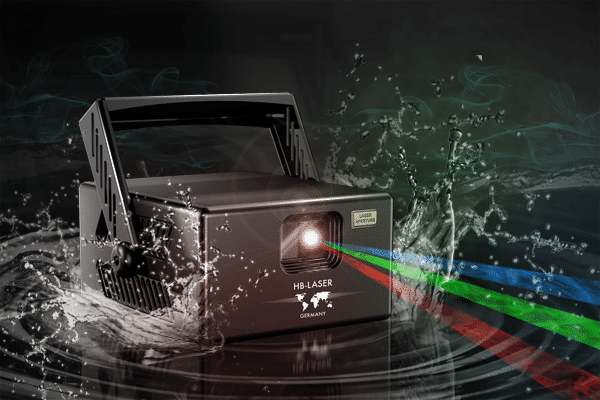

LightCube Professional 851 IP68

LightCube 851 IP68 – a compact show laser series in a weather- and waterproof aluminium housing. Developed and manufactured in Germany it is a perfect match for high-quality show laser applications in aggressive and damp environments. (Permanent installations in baths, caves, mines and musical fountains)

  • processor-controlled, active temperature regulation ensures a long lifetime even if the system is continuously operated
  • the housing is waterproof rated IP68, with integrated heating, which makes the systems maintenance-free also under challenging weather conditions
HB-Laser LightCube 360°
  • 360° projection lens
  • projection radially around the center system
  • usable with different show laser systems with up to 20W power
  • vertical scan angle: ca. 90°
  • horizontal scan angle: 360°
  • scan speed up to 90kpps

* Technical details on request

HB-Laser LightCube 863 OPSL High End
  • Shock-Absorbing Technology preventing misalignment
  • intelligent dynamic zone safety  setting at back side
  • up to 30W RGB laser system with great white balance
  • OPSL technology
  • CT-6215 scanners with Apollo drivers
  • color balancing, size, flip, rotate and offset directly adjustable at the device

* Technical details on request

We are the experts for you

We have the know-how, over three decades of experience and the ability to offer the appropriate and professional laser production solution for indoor and outdoor applications.

Our customized solutions in our own production are found worldwide in a wide variety of application areas:

  • optics
  • mechanics
  • electronics
  • laser systems for public use
  • laser systems for industrially use
  • medical applications

A customized solution is our passion

Laser Accessoiries, OEM Products

Overview / Accessoiries

The HB-Laser team of engineers, with years of experience, develops CAD supported optical and mechanical systems. Factoring in the in-house CNC production, this is an assurance of highest precision and sturdiness. Regardless of which HB-Lasers’ standard products, a customized components assembly or units made to customers specification – quality and life span rank first. In-house tool design and construction make quick and low-cost solutions possible even for the most eccentric special design.

Overview / OEM



Climate Housings / Weather Protection

HB-Laser offers customized solutions for every environment. Mostly the technology has to be integrated as invisible as possible into the project. Standard air conditioning units cannot offer this. Therefore HB-Laser develops and builds individual solutions according to customer requirements.

Due to our decades of experience we are able to realize condensation-free air conditioning housings even in the most confined spaces. From simple rain protection to IP68 housings for underwater use, aggressive environments in mines or extreme temperature ranges from -50°C to +60°C.

Projection Screens

Your choice of screens

For projections with lasers, lights or videos HB-Laser offers motorized screens made of foils or gauze. In a breathtaking manner, dynamic front or rear projections of laser light can be created, only depending on your demand; in combination with slide- or video projection astounding multivision effects are possible. The screens have a fast tube motor with 2 m per second to enable an exact and silent run.

Details for the different materials and dimensions on request.

IVS / Interactive Visions

the crowd puller!

An interactive projection system as ideal sales promotion – it is suitable for table, bar, counter, floor, wall, ceiling or shop window projections. Compact design and quick and easy assembly – also suitable for use in theaters and stages.

Any projector with a resolution up to 4k (or alternatively an LED wall) can be connected to the Interactive Visions System. 2 Full HD projectors and several systems can also be combined with each other.

Special programming enables the interface to control light and costume projections (spotlights, LED stipes, moving heads) via Artnet and DMX.

Sounds Systems

PR Systems

Due to our long-standing and close cooperation with the company PR Electronic, we are able to offer our customers customized sound systems that meet their individual needs and desires and can be optimally integrated into any project.

PR Electronic has one of the most rigorous quality standards for developing and producing speaker systems. Together with the most advanced technology PR Electronic speaker systems meets the high demands for one of the best products to reproduce any kind of sounds in best sound quality.

PR Electronic is manufacturer of advanced speaker systems with the aim to use only the best components, materials and latest construction methods to reach „simply“ reinforcing the original sounds.

Line Array Systems

Due to this the PR engineers are developing sound systems, elec-tronics and speaker cabinets not for special shades of sound – but to reproduce all audio sources in a perfect way. The only difference for the speakers should be the site-specific acoustic challenge any-where in the world.

This results in speaker systems which are optimized in sound quality for musicians, contractings, cinemas, installations and touring appli-cations.

Further goals of PR Electronic speaker systems are the small size, the low weight as well as the availability of weatherproof systems and the possibility to offer all products in customized colors hence they can be integrated seamlessly into the installation environment.

Soundfloor



  • The Sound-Floor1x1 series is used to transmit sound invisibly over the floor.
  • High-performance systems ensure crystal-clear and easy-to-understand sound.
  • All systems can be provided with all common, flexible floor coverings.
  • The individual modules can be easily connected to each other using a sophisticated quick connector system.
  • Advantages: Extremely robust design, low weight, therefore easy to handle, active control via system controller, therefore maximum flexibility

WIDE RANGE OF POSSIBLE USES:

  • Discos – On the dance floor
  • Tent and open-air parties – bass feeling without noise
  • Amusement parks – To increase the experience value
  • Cinema – As an additional effect
  • Trade fairs, exhibitions – “double floor” with cable laying
  • Museums, shopping centers – for information transmission
  • Experience gastronomy – To increase the experience value

Our products for your project



We offer a wide range of products and services in order to be able to offer our customers comprehensive complete solutions. DPSS, diode and OPSL laser systems, as well as a wide variety of water and video technology. For the multimedia sector, we also offer reactive projection systems, as well as interactive and project-specific solutions.

Industrial customers can access an extensive range of industrial lasers, components and OEM products from us. Software and sound solutions complete our range.

A large area is the development and special construction for museums and projects. We also offer complete project planning and visualization for our projects.

Thanks to our many years of experience and our networked thinking, we are able to build and adapt our products individually according to customer requirements and wishes. We have comprehensive knowledge in the field of control technology for the perfect synchronization and combination of a wide variety of media.

Our laser systems

Browse through our product range and find the systems for your project.

Our water technology

Browse through our product range and find the systems for your project.

Research & Development

Browse through our product range and find the systems for your project.

Video & laser mapping

Browse through our product range and find the systems for your project.

sound systems

Browse through our product range and find the systems for your project.

special effects

Browse through our product range and find the systems for your project.

Projektplanung & Visualisierung

Browse through our product range and find the systems for your project.

Our laser technology

Laser systems
Professional series

Professional series

outdoor series

outdoor series

special solutions

special solutions

Professional series



  • Unique shock-absorbing technology that prevents any misalignment and minimizes the effects of vibration -> Perfectly suitable for the event area
  • Processor-controlled, active temperature control ensures a long service life, even in continuous operation
  • Very quiet in operation -> a must for museums, theaters & planetariums
  • Robust & dustproof housing ensures maintenance-free system
  • 2 year guarantee on all laser systems
  • Made in Germany

LightCube Professional 860

LightCube Professional 863

LightCube Professional 871



Laser source: OPSL

Laser class: 4

Operating modes: ILDA, LAN, SD, Opt. DMX

Scanner: Apollo Max 45kpps@8° ILDA

Optional: Apollo Infinity 90kpps@8°ILDA

Power connection: 90-265V AC 50-60Hz

Power consumption: 500-1500W, depending on the installed laser power

Scan angle: max 80°

Accessories: key lock power cord, manual

Laser source: Pure Diode

Laser class: 4

Operating modes: ILDA, LAN, SD, Opt. DMX

Scanner: Apollo Infinity 60kpps@8°ILDA

Power connection: 90-230V AC 50-60Hz

Power consumption: LC 24-37 750W max.

Scan angle: max 80°

Accessories: key lock power cord, manual



Laser class: 4

Operating modes: ILDA, LAN, SD, Opt. DMX

Scanner: Apollo Max 45kpps@8° ILDA Optional: Apollo Infinity 90kpps@8°ILDA

Power connection: 90-265V AC 50-60Hz

Power consumption: 500-1500W, depending on the installed laser power

Scan angle: max 80°

Accessories: key lock power cord, manual

outdoor series



  • Processor-controlled, active temperature control ensures a long service life, even in continuous operation
  • Weatherproof, made from a precision-milled outdoor housing up to IP68
  • Perfectly suitable for outdoor applications, even in aggressive and damp environments, e.g. in baths, caves or mines, musical fountains
  • 2 year guarantee on all laser systems
  • Made in Germany

LightCube Professional 851

LightCube Professional 852



Laser source: Pure Diode

Laser class: 4

Operating modes: ILDA, LAN, SD, Opt. DMX

Scanner: Apollo Max 45kpps@8° ILDA Optional: Apollo CT 60kpps@8°ILDA

Power connection: 90-265V AC 50-60Hz

Power consumption: LC 4-8, 250W, LC 14-17, 500W

Scan angle: max 80°

Accessories: key lock power cord, manual



Laser Source: Pure Diode/ Opt. OPSL

Laser class: 4

Operating modes: ILDA, LAN, SD, Opt. DMX

Scanner: Apollo Infinity 60kpps@8° ILDA

Power connection: 90-230V AC 50-60Hz

Power consumption: LC 24-37 750W max

Scan angle: max 80°

Accessories: key lock power cord, manual

special solutions

We offer customer and project-specific solutions for every environment. In most cases, the technology has to be integrated into a project as invisibly as possible and also be protected from the weather. In addition, the temperature often plays a major role. In order not to overheat the media technology due to high outside temperatures, a special cooling system is required. In very cold places, you may need integrated heating for the media technology. That is why we develop and build individual housings according to customer requirements and the requirements of the different areas of application. Thanks to our decades of experience, we can realize condensate-free air-conditioning housings in the tightest of spaces.from simple rain protection to IP68 housings for underwater use. We are specialists when it comes to solutions for aggressive environments such as mines, caves or in extreme climate zones between -50° C and +60° C.

Special constructions

Industrial laser

CO2 Laser

Fiber laser



  • Customized special products
  • Perfectly tailored to your project
  • Special housing designs up to IP68 for outdoor applications in all weather conditions
  • Any laser power possible on request



  • Applications in all industrial sectors: Wood, -stone, -metal, -medicine and textile industry.
  • for marking, aligning and positioning
  • Saving material and time
  • Quality of work results is increased



  • So-called gas lasers, which use CO2 gas as a medium
  • Along with solid-state lasers, these are among the most powerful and most frequently used lasers in industry
  • Are so-called gas lasers, which use CO2 gas as a medium
  • Co2 lasers have the longest wavelength of all commonly used lasers
  • Wood, rubber and transparent materials such as glass and PET plastic can also be marked
  • Very efficient and cost effective



  • Special form of solid-state laser or crystal laser
  • Laser beams are generated by optical fibers
  • The fibers serve as fiber amplifiers, but also as optical waveguides
  • enables laser engraving, but also welding and cutting of materials

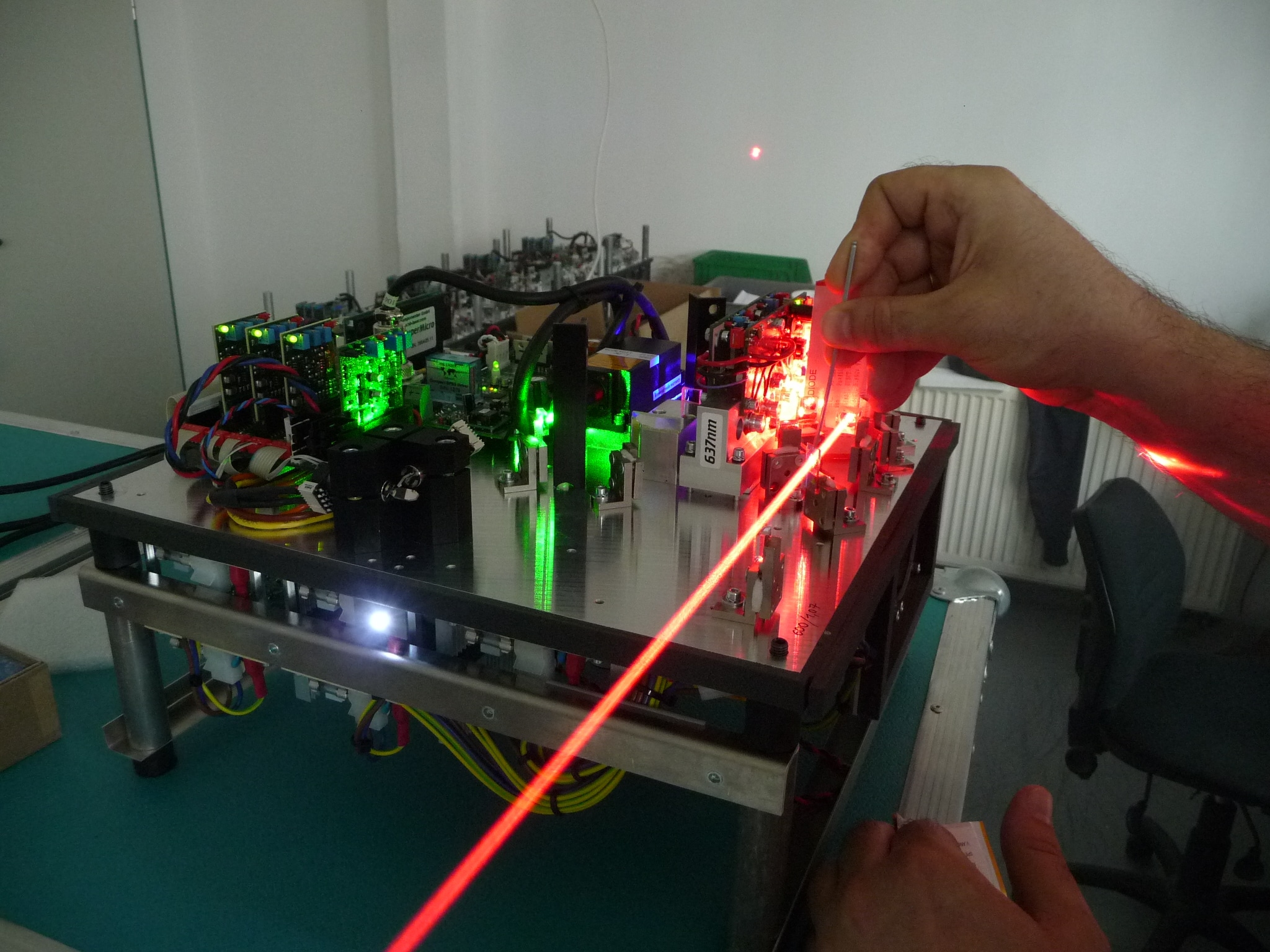

Research and Development

Research & Development

In our in-house research & development, our engineers research every day to meet the latest technical requirements in the laser and multimedia sector. This means that we can also build customer-specific special solutions for our customers.

For example, our research develops special solutions for the industrial and medical sector. In addition, we are constantly developing in the area of safety.

Safety in the navy and in air traffic are aspects that are included in our research, for example, and that we work on every day.

We are currently working on a large development project in which we are developing searchlights for the navy for rescue on the high seas.





  • In-house research & development
  • Constant further development of our devices in order to meet the latest technical requirements in the laser and multimedia sector
  • Constant development process for customer-specific special solutions
  • Researching solutions for the industrial & medical sector
  • Set safety standards in marine & air traffic
  • Industry, medicine, water and air conditioning are areas in which we also deal with basic research in cooperation with institutes and companies.
  • This know-how enables us to break new ground in the development of new technologies.

Video and laser mapping

Research & Development

A presentation technology that is becoming more and more widespread is the so-called video/laser mapping.
Generally speaking, mapping is the projection of static or dynamic images, animations or videos onto immovable objects. This can be, for example, buildings, sculptures or larger objects.
The object to be projected is precisely irradiated by our powerful lasers or video projectors, giving the object a new “virtual” shell.
A new texture or structure can thus be projected onto an object in order to give it a new look. With 3D video/laser mapping, not just a photo or a still image is projected. With the help of predefined, custom-fit videos or animations, the illuminated objects and facades are given a life of their own. Fascinating optical illusions can thus be created and entire scenic productions can be realised.



  • Perfectly suitable for advertising animations and productions on building facades
  • To set a special highlight – stay in the memory
  • Draws a lot of attention and amazement from the spectators
  • Unique optical illusions can be created
  • Building architecture can be particularly emphasized in this way

sound systems

sound systems

A successful multimedia project often also requires a high-quality sound system that perfectly captures the emotions of the audience with the right sound quality. The right sound quality of the music is enormously important for the harmony between the media.

We work with PR electronic for our customized sound solutions. From our past projects, we highly appreciate the quality and performance of these products.

PR Electronic has one of the strictest quality standards for the development and production of loudspeaker systems. Together with an advance in technology, PR Electronic loudspeaker systems meet the high demands of reproducing any musical material in optimal sound quality. Thanks to the individual and customized loudspeaker setup, PR electronic loudspeakers perfectly adapt to the respective requirements of the venue and those of the viewing/listening angle of the audience.

Soundfloor

PR Systems

Line Array Series





⦁ The Sound-Floor1x1 series is used for sound transmission, invisible over the floor.
⦁ In the process, high-performance systems ensure crystal-clear and easily understandable sound.
⦁ All systems can be fitted with all common, flexible floor coverings.
⦁ A sophisticated quick-connector system makes it easy to join the individual modules together.
⦁ Advantages: Extremely robust design, low weight, therefore easy handling, active control via system controller, thus highest flexibility.

Wide range of applications:
Discotheques – On the dance floor
Tent and open-air festivals – bass feeling without noise
Amusement parks – To enhance the experience
Cinema – As an additional effect
Fairs, exhibitions – “double floor” with cable laying
Museums, shopping centers – For information transmission
Experience gastronomy – To increase the value of the experience



  • To achieve the best sound result, the components of the individual series are combined to perfectly matched complete systems for individual projects
  • PR systems range from compact systems for small clubs and events to large systems with high sound pressure levels for larger halls and open-air events.
  • Offer very easy handling and best combinability due to trapezoidal housing
  • The goal of all PR sound systems is to “amplify the original sound”.
  • The advantage of all systems is the very compact design with high system performance and maximum sound pressure at the same time
  • All products can be customized in color to match the installation environment
  • Further advantages are the small system sizes of the loudspeakers, the low weight as well as the availability of weatherproof housings



  • The LA-HND series models produce a precise and accurately controllable “line array effect”.
  • They have a neodymium magnet driven woofer system with aluminum die-cast basket,
    together with a specially tuned reflex system. This allows the user to sound centrally and directionally with a powerful and precise low-frequency reproduction over long distances.
  • The mid-high units are also designed according to the latest technological standards for use as a line array.
  • the individual systems can be wired together quickly and without confusion

special effects

sound systems

For special projects, special eye-catchers are often required to attract and amaze visitors. For such WOW effects there are our so-called “special effects”, which round off a unique project perfectly and make it unforgettable.
In addition to our interactive vision systems, our special effects product range now also includes light effects, pyrotechnics, fire shows, side effects and drone shows.
On request, we will be happy to make you an individual offer for your project

Interactive Visions (IVS)

Light effects

Pyrotechnics

Fire show

Fog effects

Drone show



  • Interactive Visions is a reactive projection system that makes images and movies appear more dynamic and interesting, and can also act as a central control unit for video, sound and lighting.
  • It responds to the presence of people in amazing ways.
  • Visitors’ movement triggers visual effects on the projected images or films.
  • The effects dynamize the projection and increase the attention of visitors.
  • The visitor recognizes himself as the trigger of the effects and begins to interact with the projection.
  • This creates an intensive connection between visitors, guests or customers and the content presented on Interactive Visions in a very natural way.
  • Interactive Visions can be projected on the floor, walls, tables, or ceiling, and content can be created and/or customized according to client specifications.
