HB-LASER
WHO WE ARE
HB-Laser’s operational areas and services focus not only on its headquarters in Germany but extend to locations all around the world.
At the location in Schwaebisch Gmuend the departments for development, production, project planning, designing, training as well as the creative department are housed. On site our teams take care of implementation and realization of projects. Sometimes the operational areas couldn’t be more different: whether indoors or outdoors, in areas with extreme (weather) conditions, on buildings, underwater, or in underground tunnels – HB-Laser has many years of experience and competent, highly qualified staff to implement projects so that customer’s expectations are exceeded.
In addition to the project implementation, technical modifications, maintenance and service on site are also parts of the service spectrum of HB-Laser.
our
CUSTOMIZED
LIGHT
CUBE SERIES
LIGHT CUBE SERIES MKII PROFESSIONAL
860 MKII Professional
SPECIFICATIONS
- Height : 189 mm (with hanger: 257 mm)
- Width: 331 mm (with hanger: 376 mm)
- Depth: 261 mm
- Weight: 14,5 kg
- Housing: black anodized 6mm thick aluminium,
- Degree of protection: IP 52

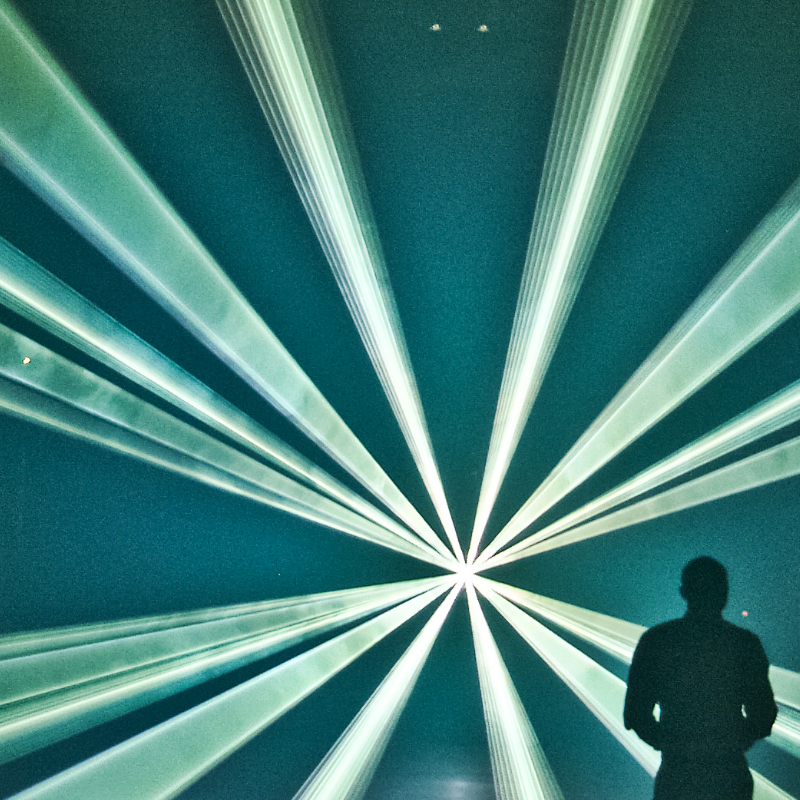

A compact show laser in a robust and dustproof housing. Developed and manufactured in Germany it is a perfect match for high-quality show laser applications.
- Unique Shock-Absorbing-Technology minimalizes influences caused by vibrations, shocks or bumps. It prevents damages/misalignment of the optical parts. (great for touring and rental)
- Processor-controlled, active temperature regulation ensures a long lifetime even if the system is conti-nuously operated
- Dust proof housing provides maintenance-free systems
- Extremely quiet operation makes this series a must have for museums, theatres and planetariums
863 MKII Professional
SPECIFICATIONS
- Height : 260 mm (with hanger: 403 mm)
- Width: 456 mm (with hanger: 505 mm)
- Depth: 382 mm
- Weight: 27 kg
- Housing: black anodized 6mm thick aluminium,
- Degree of protection: IP 52
A compact show laser series in a robust and dustproof housing. Developed and manufactured in Germany it is a perfect match for high-quality show laser applications.
LightCube Professional series is manufactured individually and can be adapted to customer requirements.Achievements up to 300W RGB and Low Divergence Executions with OPSL or fiber laser technology are available on request.
With integrated HB-FB4 controller are all connection options integrated. SD card player, TCP / IP, ILDA, DMX allows easy implementation in multimedia environments.
851 IP68 MKII Professional
SPECIFICATTION
- Height: 167 mm (with hanger: 267 mm)
- Width: 250 mm (with hanger: 294 mm)
- Depth: 290 mm
- Weight: 15 kg
- Housing: massive aluminium
- Degree of protection: IP 68
LightCube 851 IP68 – a compact show laser series in a weather- and waterproof aluminium housing.
Developed and manufactured in Germany it is a perfect match for high-quality show laser applications in aggressive and damp environments – Permanent instal-
lations in baths, caves, mines and musical fountains.
- Processor-controlled, active temperature regulation ensures a long lifetime even if the system is conti-nuously operated
- The housing is waterproof rated IP68, with integrated heating, which makes the systems maintenance-free also under challenging weather conditions
The RGB white light show lasers are equipped with Pure Diode Technology, offering superior beam characteristics, modulation and linear color transition. Fast Apollo Max scanners allow scanning angles up to 80° and scanning speeds up to 45kpps @ 8° (optional up to 60kpps @ 8°).
* Optionally an integrated HB-FB-4 controller with standalone operation with time switch, ILDA in/through and LAN connection is available. DMX control is also available.
852 IP68 MKII Professional
SPECIFICATIONS
- Height: mm (with hanger: mm)
- Width: mm (with hanger: mm)
- Depth: mm
- Weight: kg
- Housing: massive aluminium
- Degree of protection: IP 68
LightCube 852 IP68 – a compact show laser series in a weather- and waterproof aluminium housing.
Developed and manufactured in Germany it is a perfect match for high-quality show laser applications in aggressive and damp environments – Permanent installations in baths, caves, mines and musical fountains.
- Processor-controlled, active temperature regulation ensures a long lifetime even if the system is conti-nuously operated
- The housing is waterproof rated IP68, with integrated heating, which makes the systems maintenance-free also under challenging weather conditions
The RGB white light show lasers are equipped with Pure Diode Technology, offering superior beam characteristics, modulation and linear color transition. Fast Apollo Max scanners allow scanning angles up to 80° and scanning speeds up to 45kpps @ 8° (optional up to 60kpps @ 8°).
* Optionally an integrated HB-FB-4 controller with standalone operation with time switch, ILDA in/through and LAN connection is available. DMX control is also available.
861 MKII Professional
SPECIFICATION
- Height : 189 mm (with hanger: 257 mm)
- Width: 331 mm (with hanger: 376 mm)
- Depth: 261 mm
- Weight: 14,5 kg
- Housing: black anodized 6mm thick aluminium,
- Degree of protection: IP 52
A compact show laser in a robust and dustproof housing. Developed and manufactured in Germany it is a perfect match for high-quality show laser applications.
- Unique Shock-Absorbing-Technology minimalizes influences caused by vibrations, shocks or bumps. It prevents damages/misalignment of the optical parts. (great for touring and rental)
- Processor-controlled, active temperature regulation ensures a long lifetime even if the system is conti-nuously operated
- Dust proof housing provides maintenance-free systems
- Extremely quiet operation makes this series a must have for museums, theatres and planetariums
LASER
ACCESSORIES
Vulcan Industrial Laser
HB-Laser offers a huge variety of industrial laser systems including accessories. All components are available as single pieces. OEM products and custom specific developments are available on request.
POSSIBLE PROCESSING OF:
Textile & Leather positioning, Wood Stone, Glass & Ceramics, Rubber, Tyres & Plastics, Metal, Paper, Aircraft, Vehicle & Mould Constructions, Labeling, Measurement image processing, Medicine technology

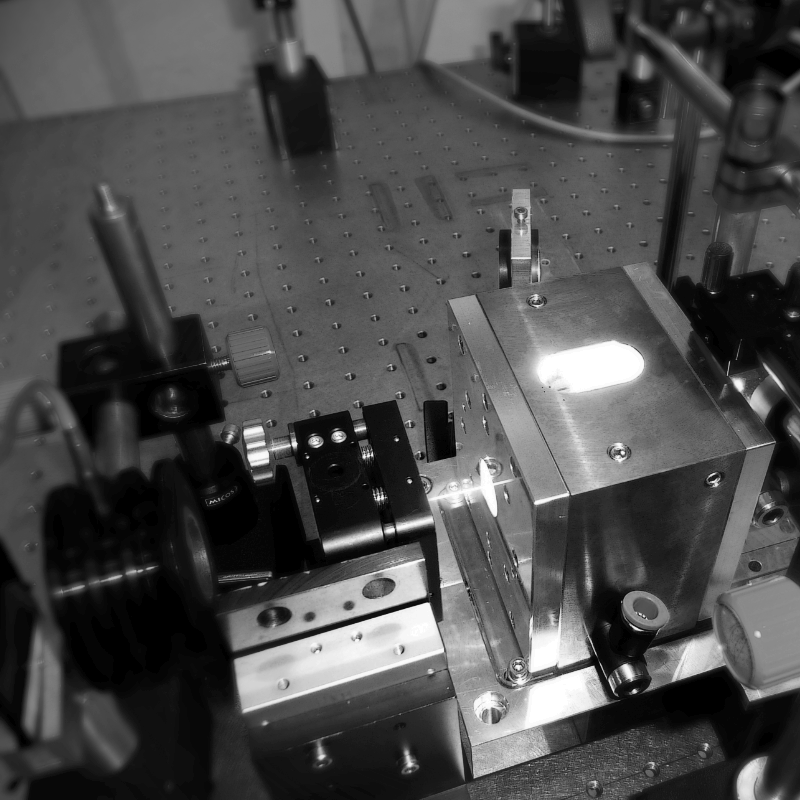

OPTOMECHANICS
The HB-Laser team of engineers, with years of experience, develops CAD supported optical and mechanical systems. Factoring in the in-house CNC production, this is an assurance of highest precision and sturdiness. Regardless of which HB-Lasers’ standard products, a customized components assembly or units made to customers specification – quality and life span rank first. In-house tool design and construction make quick and low-cost solutions possible even for the most eccentric special design.
OEM PRODUCTS
SPECIFICATIONS
- Height : 260 mm (with hanger: 403 mm)
- Width: 456 mm (with hanger: 505 mm)
- Depth: 382 mm
- Weight: 27 kg
- Housing: black anodized 6mm thick aluminium,
- Degree of protection: IP 52
A compact show laser series in a robust and dustproof housing. Developed and manufactured in Germany it is a perfect match for high-quality show laser applications.
LightCube Professional series is manufactured individually and can be adapted to customer requirements.Achievements up to 300W RGB and Low Divergence Executions with OPSL or fiber laser technology are available on request.
With integrated HB-FB4 controller are all connection options integrated. SD card player, TCP / IP, ILDA, DMX allows easy implementation in multimedia environments.
OVERVIEW / OEM PRODUCTS
Analog and digital systems for measurement and control for high-speed and precision tools rank highly in HB-Laser’s development center.
Whether customized diode driver units for medical engineering, scanning systems in the industrial sector or modules for multimedia and illumination.
OUR
PROFESSIONAL
SOUND SYSTEMS
always professional and customized

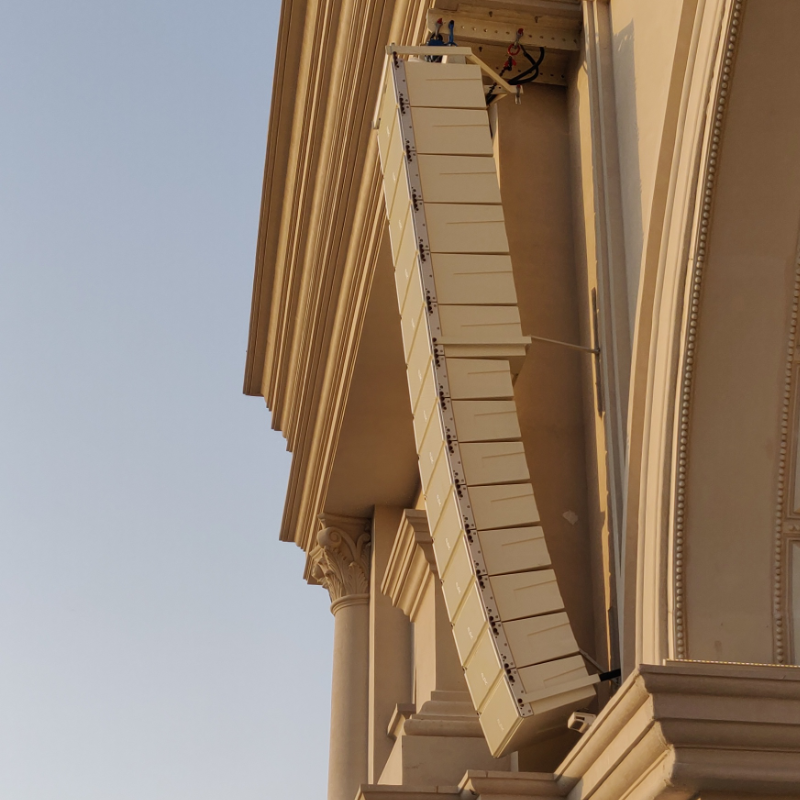

Due to our long-standing and close cooperation with the company PR Electronic, we are able to offer our customers customized sound systems that meet their individual needs and desires and can be optimally integrated into any project.
PR Electronic has one of the most rigorous quality standards for developing and producing speaker systems. Together with the most advanced technology PR electronic speaker systems meets the high demands for one of the best products to reproduce any kind of sounds in best sound quality.
PR electronic is manufacturer of advanced speaker systems with the aim to use only the best components, materials and latest construction methods to reach „simply“ reinforcing the original sounds.
Due to this the PR engineers are developing sound systems, electronics and speaker cabinets not for special shades of sound – but to reproduce all audio sources in a perfect way. The only difference for the speakers should be the site-specific acoustic challenge anywhere in the world.
This results in speaker systems which are optimized in sound quality for musicians, contractings, cinemas, installations and touring applications. Further goals of PR Electronic speaker systems are the small size, the low weight as well as the availability of weatherproof systems and the possibility to offer all products in customized colors hence they can be integrated seamlessly into the installation environment.
WHY IT IS A
CROWED PULLER
The interactive system
An interactive projection system as ideal sales promotion – it is suitable for table, bar, counter, floor, wall, ceiling or shop window projections. Compact design and quick and easy assembly – also suitable for use in theaters and stages.
Any projector with a resolution up to 4k (or alternatively an LED wall) can be connected to the Interactive Visions System. 2 Full HD projectors and several systems can also be combined with each other.
Special programming enables the interface to control light and costume projections (spotlights, LED stipes, moving heads) via Artnet and DMX.
DETAILS
The example of "Water & Fish"
Fish swim in the water and react to your movement – the „water“ makes waves and a splash makes the effect an
experience. Different layers are superimposed.
The water effect overlays the fish.
The fish can be placed on any background image.
You can choose any image as a background and load it into the IVS system (BMP or JPG with a resolution of the respective video projector or LED wall).
INTERACTIVE VISIONS IP HOUSINGS
The Interactive Visions IP System combines all components for an interactive projection in a flexible, weatherproof housing. The system can be used both indoors and outdoors thanks to a special ceiling or mast mount.
The system has the following components:
- Weather-resistant powder-coated IP53 housing in available RAL colors
- Interactive Visions Professional System
- Dedicated camera with selectable lens and bracket
- Integrated infrared LED radiator
- Filtered and temperature controlled cooling and heating system
- Customized solutions for all kind of video projectors
